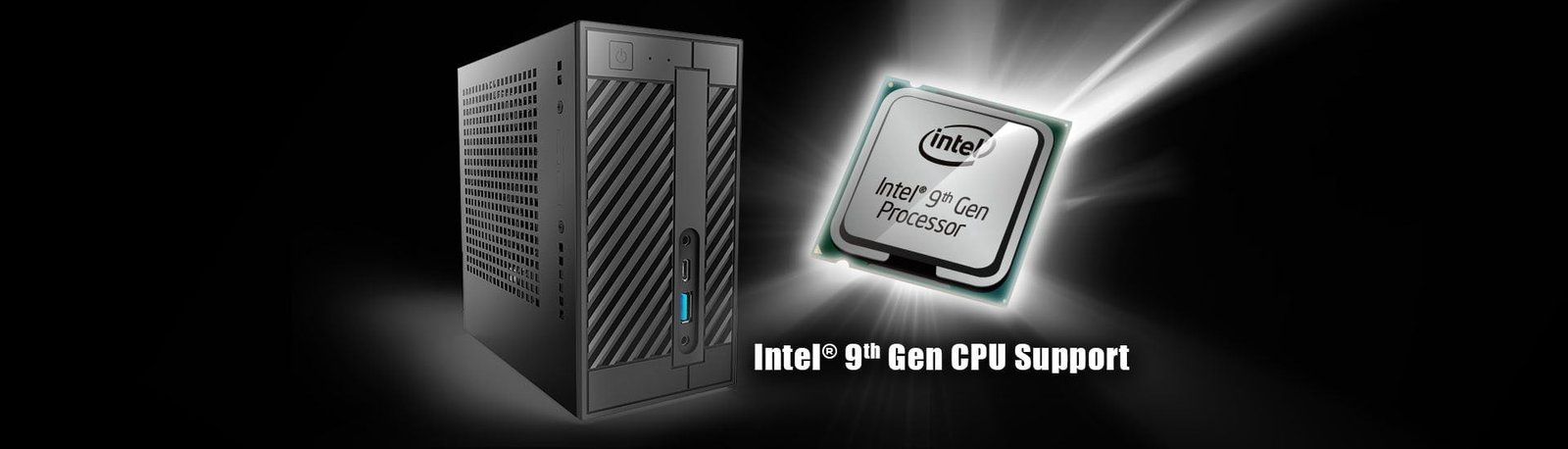

ASRock DeskMini 310 supports Intel® 9th Gen Processors

DM310-Intel9thCPU

The world leading motherboard and mini PC manufacturer – ASRock, announces DeskMini 310 supports Intel® the latest 9th Generation Core™ series 65-watt LGA1151 processors. ASRock DeskMini 310 adopts with Intel® H310 chipset, supports up to 32GB DDR4-2666MHz memory, dual 2.5-inch hard drive and one M.2 (2280) PCIe Gen3 x4 NVMe SSD. ASRock provides various optional accessories of DeskMini 310, includes USB 2.0 cable, VESA mount kit, and Wi-Fi ac kit. With comprehensive accessories, DeskMini 310 can satisfy diverse demands from all users.

ASRock DeskMini 310 Performance

Specifications of DeskMini 310

  • CPU- Supports Intel® 9th/8th Gen LGA1151 Processors (Max. TDP 65W)
  • Cooler- Supports Intel® LGA115x CPU Cooler (Max. Height ≦46mm)
  • OS- Microsoft® Windows® 10 64-bit compliant
  • Chipset- Intel® H310
  • Memory- Supports 2 x SO-DIMM DDR4-2666MHz, Max. 32GB (non-ECC)
  • Graphics- Integrated Intel® UHD Graphics
  • Graphics Output- 1 x HDMI (4K@30Hz)
    – 1 x DisplayPort (4K@60Hz)
    – 1 x D-Sub

    *Supports up to 2 displays simultaneously.
  • Audio- 1 x Head Phone with Mic Jack
    – 1 x Mic-In
    – Realtek ALC233
  • Front USB- 1 x USB 3.1 Gen1 Type-C
    – 1 x USB 3.1 Gen1 Type-A
  • Rear USB- 1 x USB 3.1 Gen1 Type-A
    – 1 x USB 2.0 Type-A
  • Storage- M.2_1: Type 2280 PCIe Gen3 x4 & SATA 6Gb
    – 2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive
    – 1 x Micro SD Card Reader
  • LAN- 1 x RJ45 Gigabit LAN
    – Intel® Gigabit I219V
  • WLAN- 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
    – Support Intel® CNVi module, PCIe
  • Front I/O- 2 x USB 2.0 Headers, 1 x Front Panel Header
    – 2 x 4-Pin fan connectors (CPU, SYS)
    – 1 x DC-In Jack (Supports 19V Power Adapters)
    – 1 x Internal Speaker Header (4-Pin)
    – 1 x Chassis Intrusion Header (2-Pin)
  • Rear I/O- 1 x HDMI*
    – 1 x DP*
    – 1 x VGA*
    – 1 x USB 2.0 Type-A
    – 1 x USB 3.1 Gen1 Type-A

    *Three graphics output options : HDMI,DP ,VGA and supports up to 2 displays simultaneously.
  • Connectors- 1 x USB 2.0 Header
    – 1 x Front Panel Header
    – 2 x 4-Pin Fan Connectors
    – 1 x DC-In Jack (Supports 19V Power Adapters)
    – 1 x 4-Pin Audio Header
    – 1 x Internal Speaker Header
    – 1 x 2-Pin Chassis Intrusion Header
  • Power Unit- 120W/19V Adapter
  • Operation Temperature- 0-35°C
  • Accessory- 2 x SATA Data with Power Cable
    – 1 x Screws Pack
  • Dimension- Motherboard: 5.8″ x 5.4″ (Mini-STX)
    – Barebones: 155 x 155 x 80 mm (1.92L)
  • Security- Kensington lock
    – Key Lock
  • Certification- CE, FCC
    – ErP/EuP ready (ErP/EuP ready power supply is required)
  • Remark- TPM Software
